Antennas1

HOME BREW ANTENNAS 1

Here are some pictures of G6YGZ's construction of his Cobbweb antenna.

Connection box 1

Connection box 2

Connection box 3

Connection box 4

Spider boss for support arms

One of the 5 tapping points

Junction box assenbly

Connection box matrix 1

Connection box matrix 2

Basic antenna layout

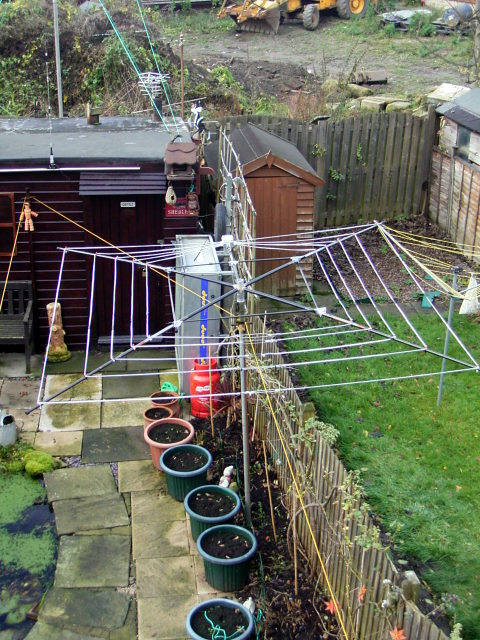

Cobwebb Antenna in 7 foot test position.

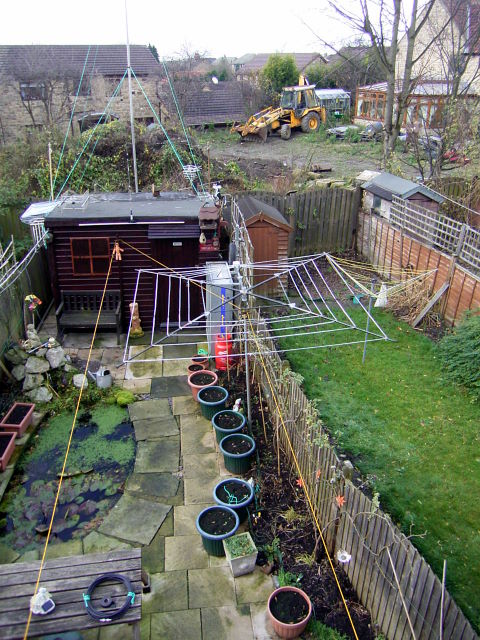

Cobbweb Antenna in test position from above.

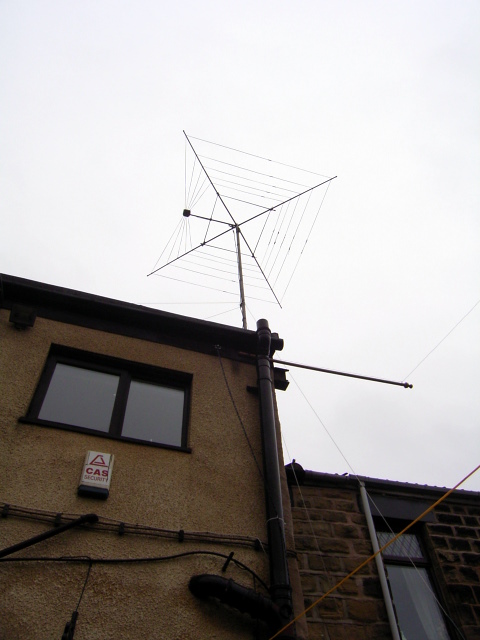

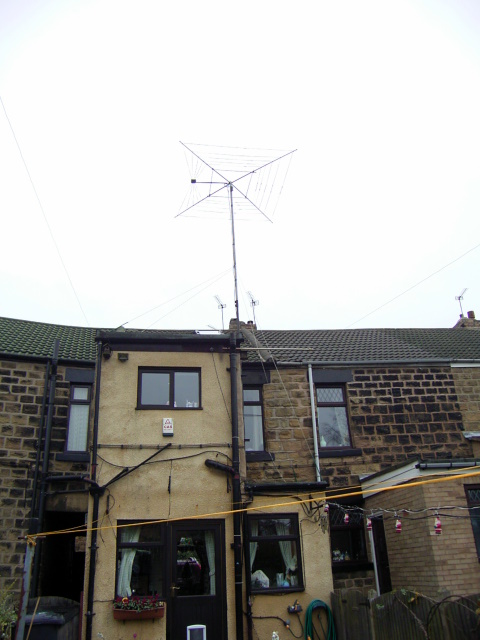

Cobwebb Antenna working in situ.

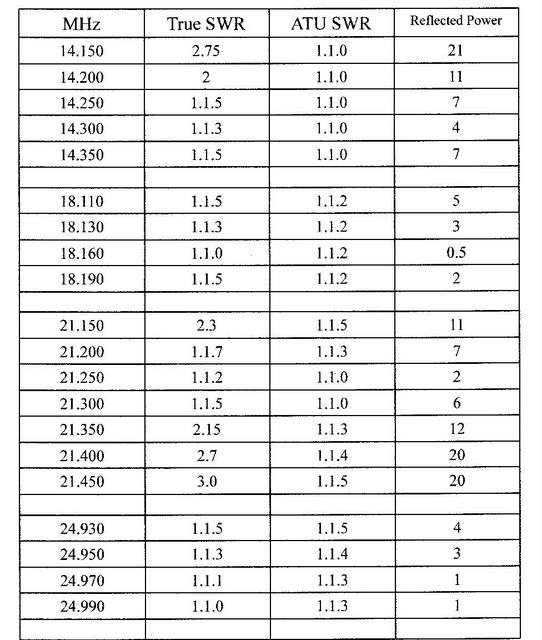

Cobwebb Antenna SWR tables 14-18-21-24 Mhz.

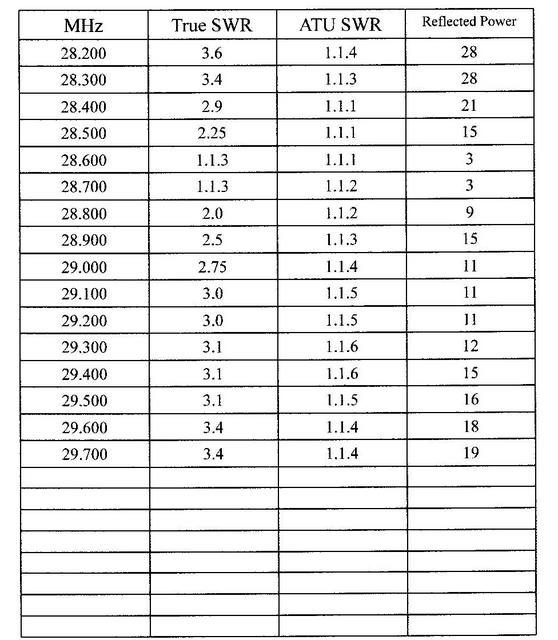

Cobwebb Antenna SWR tables 28-29 Mhz.

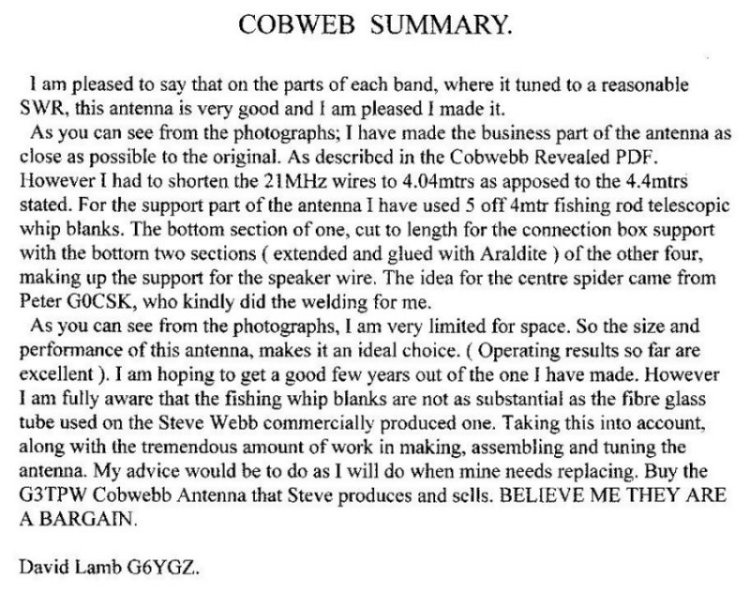

Cobwebb summary
